Technical Specifications: Elbow Corner FIT
| SKU | Size |
|---|---|
| SP-KZBR 25×25-1/2 | 25mm x 25mm * 1/2″ |
| SP-KZBR 32×32-1/2 | 32mm x 32mm * 1/2″ |
| SP-KZBR 32×32-3/4 | 32mm x 32mm * 3/4″ |
Click to add this item to cart.
| SKU: | SP-KZBR |
Description

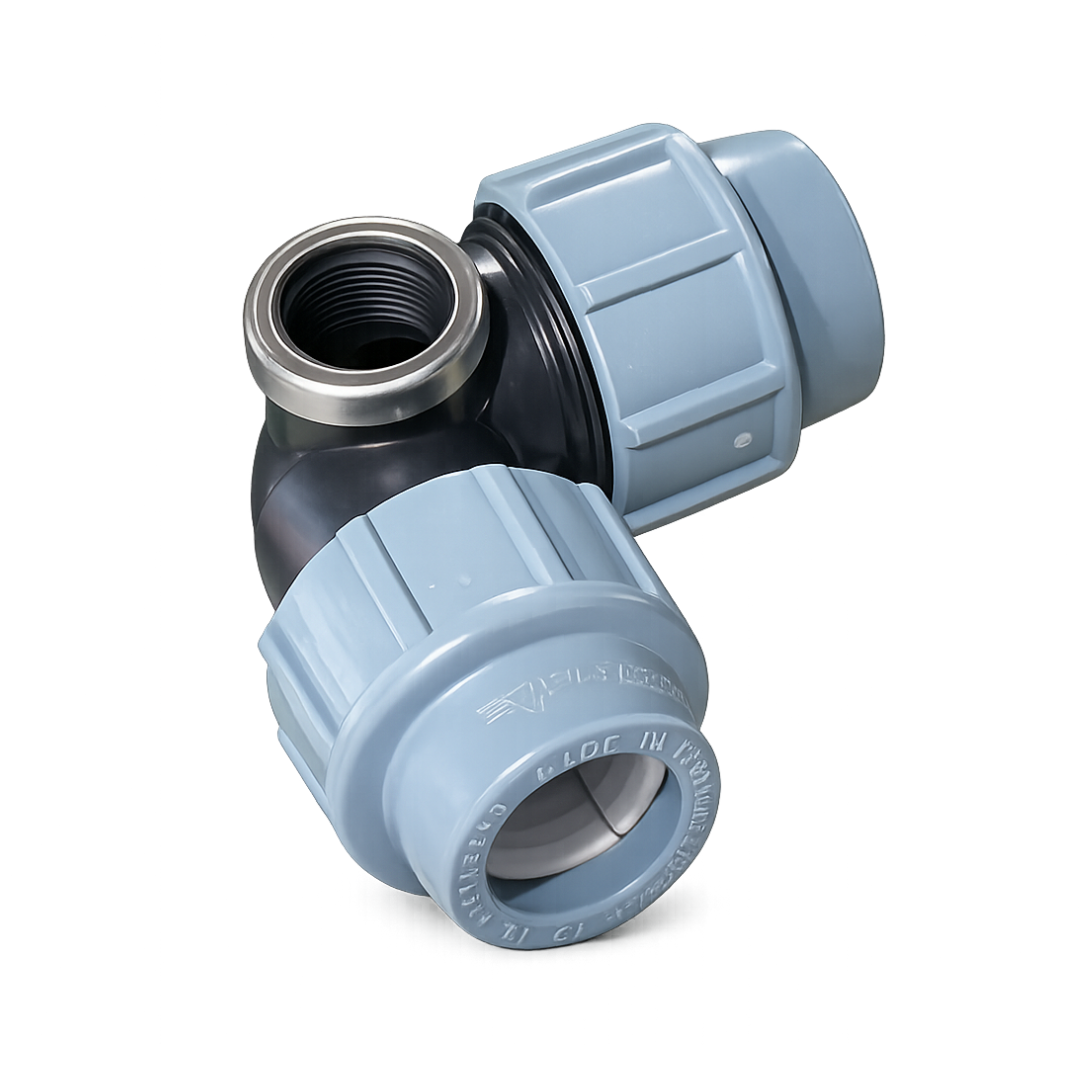

The Elbow corner or MDPE compression female threaded elbow is a 90-degree pipe fitting designed to connect MDPE pipes to male threaded components. Manufactured from high-strength polymer with a metal female threaded insert, it provides a secure directional change while maintaining a reliable threaded outlet connection. Suitable for standard MDPE compression systems, it allows integration with threaded valves, taps, or fittings during installation or maintenance.
Technical Specification
- Product Type: 90-degree compression elbow with female thread
- Material: High-strength polymer body with metal threaded insert
- Connection Type: Compression x Compression x Female Thread
- Angle: 90 degrees
- Compatibility: MDPE pipes and male threaded fittings
- Application: Directional pipe connection with threaded outlet
